Rear Shelf, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

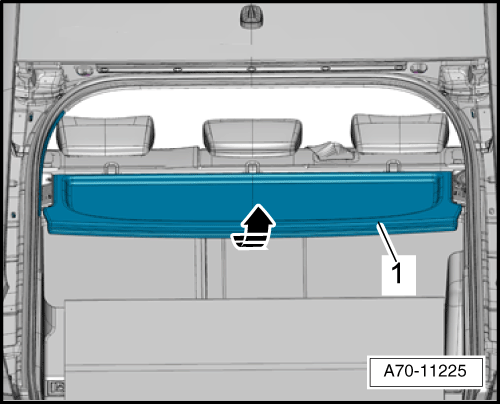

Fig 1: Identifying Rear Shelf Front Section

Courtesy of AUDI OF AMERICA, LLC

-- Rear shelf front section: Pull the rear shelf -1- out toward the rear -arrow- and remove.

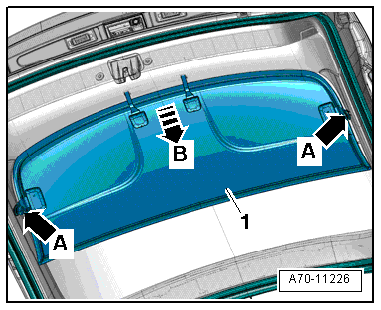

-- Rear shelf rear section: Disengage the rear shelf -1- from the rear lid trim panel -A arrows-, pull it out of the rear lid trim panel -arrow B- and remove.

Fig 2: Identifying Rear Shelf Rear Section

Courtesy of AUDI OF AMERICA, LLC
