Overview - Rear Shelf
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

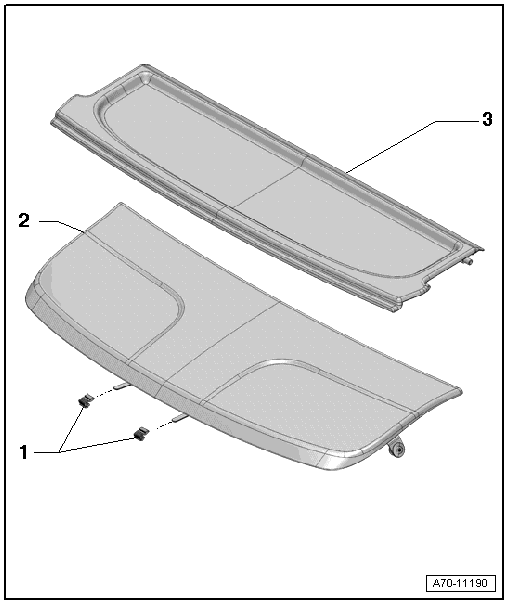

- Rubber Bushing
- Insert into the bottom of the rear lid trim panel
- Rear Shelf Rear Section
- Hung on rear lid
- Removing and installing. Refer to REAR SHELF, REMOVING AND INSTALLING .
- Front of the Rear Shelf
- Equipment levels
- Removing and installing. Refer to REAR SHELF, REMOVING AND INSTALLING .
- Engaged in the luggage compartment side trim panel
