C-Pillar Trim Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
-- Remove the rear seat belt guide. Refer to OUTER REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
-- Remove the headliner and lay it on the seats, do not remove the windshield. Refer to HEADLINER, REMOVING AND INSTALLING .
CAUTION:
- Remove the headliner and lay it on the seats when performing the following work. Do this very carefully because the headliner can be creased easily.
- Replace the headliner if it is bent.

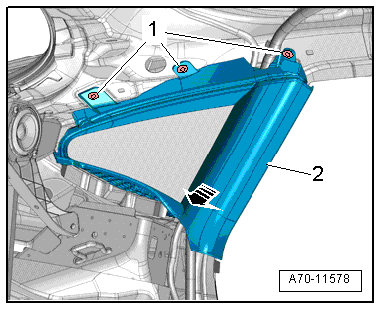

-- Remove the expanding clips -1- with the Pry Lever 80 - 200.
-- Unclip the C-pillar trim panel -2- from the C-pillar using the Pry Lever 80 - 200 -arrows- and remove it.
