Upper B-Pillar Trim, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Do not pinch the head curtain airbag when installing the B-pillar trim.

-- Guide the belt webbing and seat belt latch in through the slide for the seat belt height adjuster.

NOTE:

Ensure that the seat belt height adjuster is in the lowest position.

-- First, insert the B-pillar trim panel -3- upward into the mount on the roof.

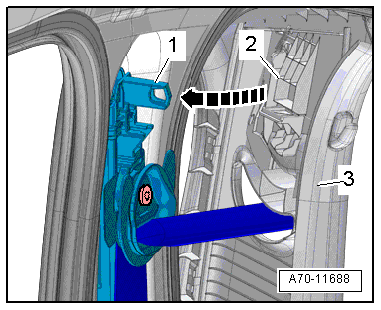

Fig 1: Installing B-Pillar Upper Trim

Courtesy of AUDI OF AMERICA, LLC

The mount -2- for the sliding piece of the upper B-pillar trim panel must engage in the retaining pin -1- on the seat belt height adjuster -arrow-.

Versions with a Vent:

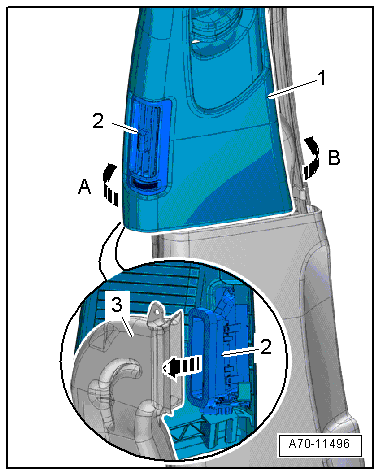

Fig 2: Installing B-Pillar Trim

Courtesy of AUDI OF AMERICA, LLC

-- Position the B-pillar rear trim -1- on the B-pillar so that the vent -2- locks into the air duct -3- -arrow-.

-- Engage the rear B-pillar trim panel on the B-pillar -arrow A-.

-- Engage the front B-pillar trim panel on the B-pillar -arrow B-.

Installation is performed in reverse order of removal, while noting the following:

-- Install the front belt anchor. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .

-- Stretch the door seal lips over the trim panel.
