Upper Rear Lid Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

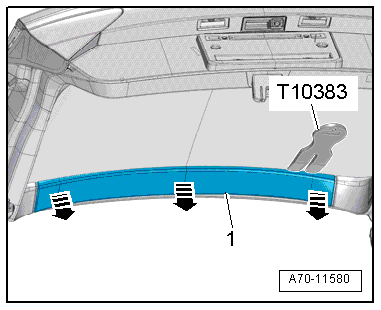

Fig 1: Identifying Upper Rear Lid Trim Panel

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the upper rear lid trim panel -1- from the rear lid using the Wedge Set T10383 -arrows- and remove.

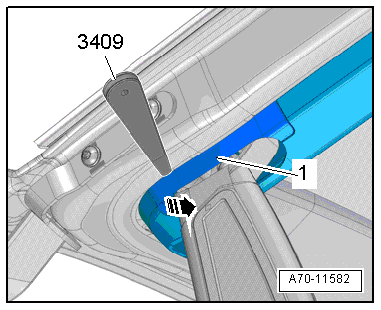

-- Unclip the gap cover -1- from the rear lid trim panel using a Trim Removal Wedge 3409 -arrow- and remove.

Fig 2: Identifying Gap Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower rear lid trim panel. Refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

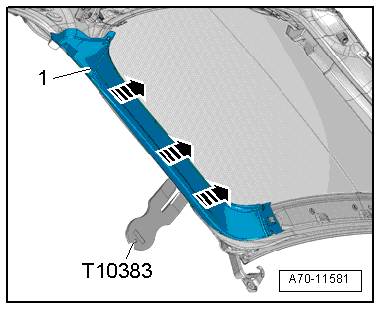

Fig 3: Identifying Side Rear Lid Trim Panel

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the side rear lid trim panel -1- from the rear lid using the Wedge Set T10383 -arrows- and remove.
