Rear Panel Sill Frame, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

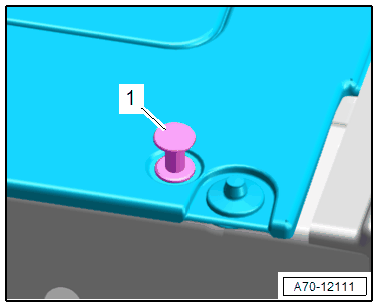

Fig 1: Identifying Expanding Clip

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment side trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- If installed: Remove the left and right expanding clip -1- using the Pry Lever 80 - 200.

-- Unclip the rear panel sill frame -1- at the front using the Trim Removal Wedge 3409 -arrows- and remove it.

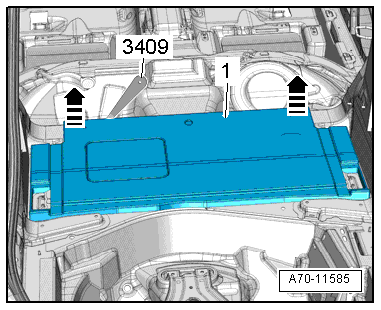

Fig 2: Removing Rear Panel Sill Frame

Courtesy of AUDI OF AMERICA, LLC
