Rear Lid Coupling Rod Trim Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side lid trim panel. Refer to UPPER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

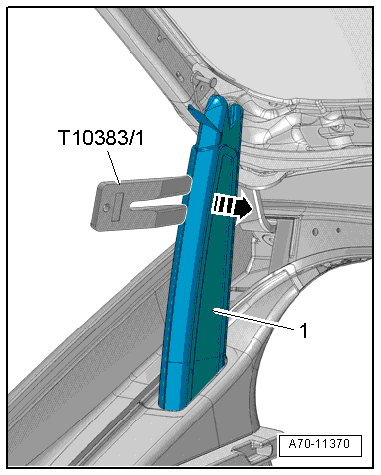

-- Unclip the retainers and open the wiring guide with the Wedge Set T10383/1 -arrow-,
-- Disengage and remove the upper wiring guide -1- from the rear lid.
