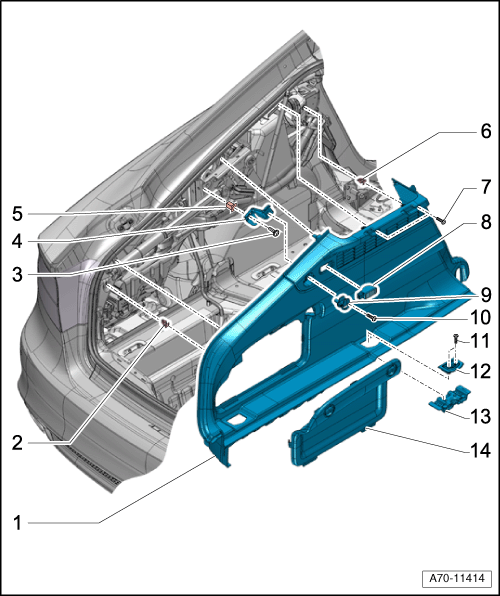

Overview - Luggage Compartment Side Trim Panel
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Luggage Compartment Side Trim Panel
- Removing and installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Clip
- Quantity: 3
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool T40280. To install, insert into the trim panel.
- Replace damaged or deformed clips
- Bolt
- 2.5 Nm
- Bracket
- For the coat hooks
- Expanding Nut
- Clip into the body
- Clip
- Quantity: 2
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool T40280. To install, insert into the trim panel.
- Replace damaged or deformed clips
- Bolt
- Quantity: 2
- 2 Nm
- Luggage Compartment Lamp -W3-
- Removing and installing. Refer to LUGGAGE COMPARTMENT LAMP .
- Coat Hooks
- Removing and installing. Refer to COAT HOOKS, REMOVING AND INSTALLING .
- Bolt
- 2.5 Nm
- Bolt
- Quantity: 4
- 6 Nm
- Tie-Down Eye
- Quantity: 2
- Removing and installing. Refer to TIE DOWN, REMOVING AND INSTALLING .
- Anchorage
- for tie-down
- Quantity: 2
- Cover
- for the luggage compartment side trim
