Overview - Lower Rear Lid Trim Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

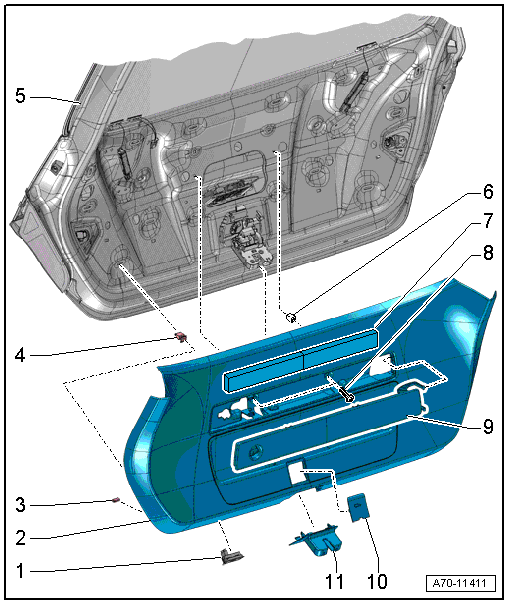

Fig 1: Lower Rear Lid Trim Panel Overview

Courtesy of AUDI OF AMERICA, LLC

Rear Lid Lock Button In Luggage Compartment -E406-
- Removing and installing. Refer to REAR LID LOCK BUTTON IN LUGGAGE COMPARTMENT .
Lower Rear Lid Trim Panel
- Removing and installing. Refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Rubber Buffer
- Quantity: 8
- Insert in the trim panel
Clip
- Quantity: 14
- Insert in the trim panel
- Remove any remaining clips in the rear lid mounting points using the Omega Clip Tool T40280. To install, insert into the trim panel.
- Replace damaged or deformed clips
Rear Lid
Expanding Nut
- Quantity: 2
- Clip into rear lid
Warning Triangle
Bolt
- 2 Nm
- Quantity: 2
Cover
- For the warning triangle
- Removing and installing. Refer to EMERGENCY TRIANGLE COVER, REMOVING AND INSTALLING .
- Engage in the rear lid trim panel
Cover
- For the emergency release
- Clip into the rear lid trim panel
Trim Panel
- For rear lid lock
- Removing and installing. Refer to REAR LID LOCK TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
