Luggage Compartment Side Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

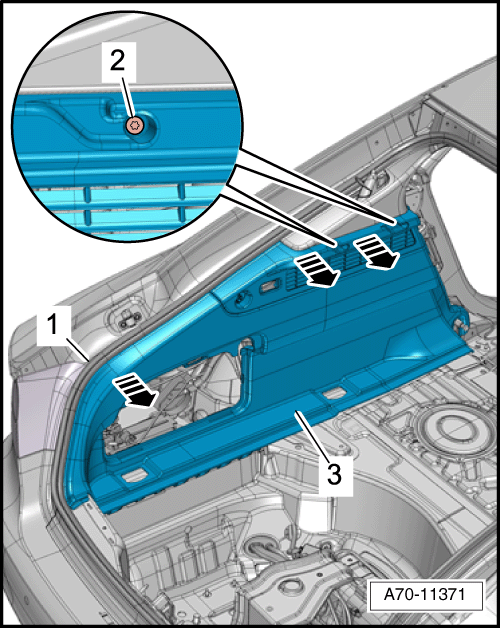

Fig 1: Luggage Compartment Side Trim Panel & Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .

-- Remove the rear shelf front section. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Remove the luggage compartment liner. Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING .

-- Remove the rear cross panel trim. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the tie-down. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Remove the coat hook. Refer to COAT HOOKS, REMOVING AND INSTALLING .

-- Remove the Luggage Compartment Lamp -W3- in the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT LAMP .

-- Remove the rear lid seal -1- near the luggage compartment side trim panel.

-- Remove the bolts -2-.

-- Pry the luggage compartment side trim panel -3- out of the body -arrows- using the Pry Lever 80 - 200.

-- Carefully remove the luggage compartment side trim panel from the D-pillar trim.

-- Disconnect the connector.

-- Remove the luggage compartment side trim panel from the catch for the rear seat backrest.
