Lower Rear Lid Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

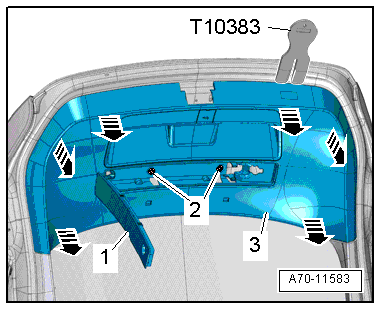

Fig 1: Identifying Lower Rear Lid Trim Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear shelf rear section. Refer to REAR SHELF, REMOVING AND INSTALLING .

-- Remove the rear lid lock trim. Refer to REAR LID LOCK TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the Rear Lid Lock Button In Luggage Compartment -E406-. Refer to REAR LID LOCK BUTTON IN LUGGAGE COMPARTMENT .

-- Open the cover -1-, remove the emergency triangle and the bolts -2- underneath it.

-- Remove the clips for the lower rear lid trim panel -3- all the way around using the Wedge Set T10383 -arrows-.

-- Reach between the rear lid trim panel and unclip the remaining clips.

-- Remove the lower rear lid trim panel.
