Lock Carrier Trim Panel, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

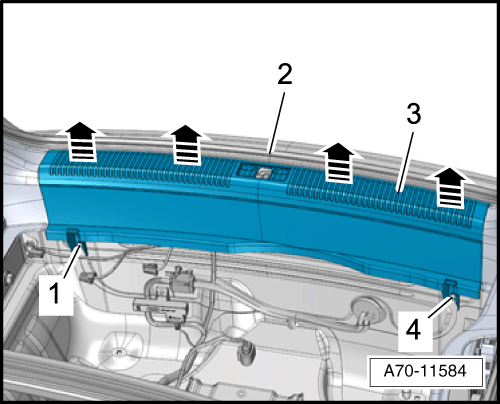

Fig 1: Identifying Rear Lid End Trim Panel
GWWA70-11584Courtesy of AUDI OF AMERICA, LLC

-- Fold the luggage compartment floor covering forward.

-- Remove the rear lid seal -2- near the rear lid end panel trim panel.

-- Unclip the rear lid end trim panel -3- upward vertically using the Pry Lever 80 - 200 -arrows- and remove.

NOTE:

A lot of force is be needed to remove the rear lid end panel trim panel from the rear lid end piece.
