Side Speaker Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

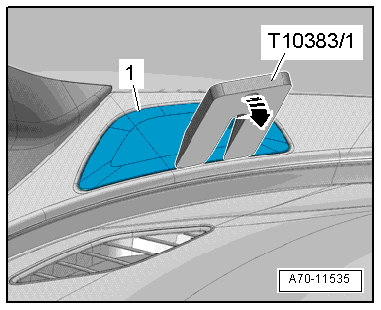

Fig 1: Removing Speaker Trim -1- Using Wedge T10383/1 -Arrow-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Proceed very carefully when removing and installing because it is relatively easy to damage the speaker trim.

-- Carefully pry out the speaker trim -1- using the Wedge Set T10383/1 -arrow-.

-- Fold the speaker trim upward and remove it toward the rear.
