Center Speaker Trim, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Be very careful when removing and installing the speaker trim because the speaker trim clips can easily break.
To avoid accidentally also prying out the defroster vent in the center located under the speaker trim, position the Trim Removal Wedge 3409 so that it is very flat.
-- Protect the instrument panel from damage with a cloth -1-.

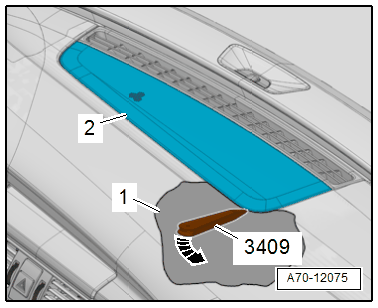

Fig 1: Unclipping Speaker Trim -2- With Trim Removal Wedge 3409 At Right Rear Rounded Section -Arrow-
-- Begin to carefully unclip the speaker trim -2- using the Trim Removal Wedge 3409 at the right rear rounded section -arrow-.

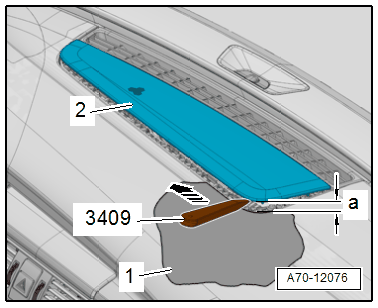

-- Continue unclipping the trim by moving toward the front left -arrow-. Do not lift the speaker trim more than -a- = 30 mm when doing this.
-- When the back of the speaker trim is completely release, lift it slightly, pull it toward the rear and remove it upward.
