Passenger Side Instrument Panel Vent, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The vent has a hole on both sides for attaching the Hook Tool T40207.

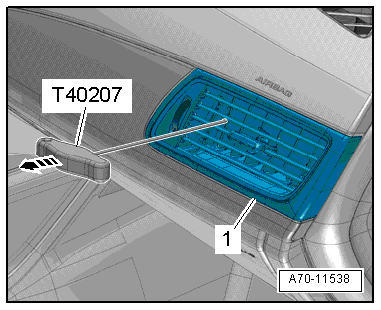

-- Carefully insert the Hook Tool T40207 between the slats and hook it into the side of the vent.
-- Alternating between the sides, carefully remove the vent -1- from the installation opening -arrow-.
-- Disconnect the connector.
