Driver Side Instrument Panel Vent, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the instrument panel gap cover. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

-- Remove the instrument cluster gap cover. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

-- Remove the instrument panel vent cover. Refer to INSTRUMENT PANEL REAR COVER, REMOVING AND INSTALLING .

-- Remove the Light Switch -E1-. Refer to LIGHT SWITCH -E1- .

-- Remove the bolt -2-.

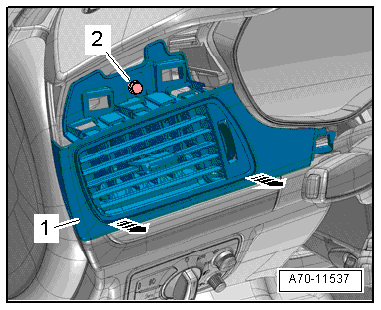

Fig 1: Removing Vents -1- On Both Sides Alternating From Side To Side -Arrows-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The vent has a hole on both sides for attaching the Hook Tool T40207.

-- Carefully insert the Hook Tool T40207 between the slats and hook it into the side of the vent.

-- Remove the vents -1- on both sides alternating from side to side -arrows-.

-- Reach through the opening for the light switch, disconnect the connector and remove the instrument panel vent.
