Center Instrument Panel Vent, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

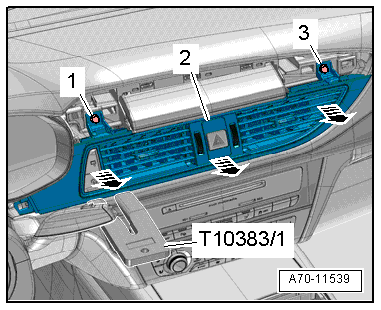

Fig 1: Removing Instrument Panel Vent -2- From Instrument Panel -Arrows- Using Wedge T10383/1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel gap cover. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

-- Remove the instrument cluster gap cover. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .

-- Remove the display unit cover. Refer to INSTRUMENT PANEL REAR COVER, REMOVING AND INSTALLING .

-- Remove the bolts -1- and -3-.

-- Pry the instrument panel vent -2- out of the instrument panel toward the rear using the Wedge Set T10383/1 -arrows-.

-- Disconnect the connectors and remove the instrument panel vent.
