Instrument Panel Upper Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Unclipping Cover -1- From Instrument Panel -Arrows- Using Trim Removal Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Vehicles with windshield projection (head up display): Unclip the cover -1- from the instrument panel using the Trim Removal Wedge 3409 -arrows-.

-- Swivel the cover upward and remove it from the instrument panel.

-- Remove the upper A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the Sunlight Photo Sensor -G107-. Refer to Sunlight Photo Sensor -G107-, Removing And Installing .

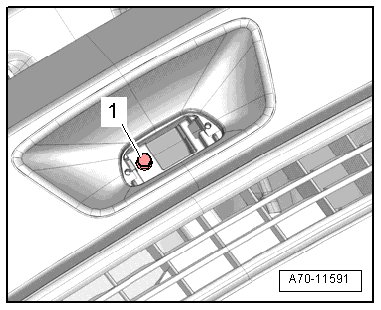

Fig 2: Identifying Screw -1- From Instrument Panel Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -1- from the instrument panel cover.

-- Remove the left and right bolt near the A-pillar -1-.

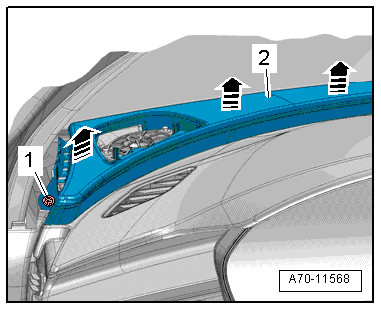

Fig 3: Unclipping Instrument Panel Cover -2- From Instrument Panel Using Wedge T10383 -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the instrument panel cover -2- upward from the instrument panel using the Wedge Set T10383 -arrows-.

-- Remove the instrument panel cover from the instrument panel.

-- Remove the instrument panel cover just far enough until it is possible to disconnect the connector from the treble speaker.

-- Guide instrument panel cover on the front passenger side on the A-pillar and remove it.

Remove the Trim Molding

Fig 4: Removing Trim Strip -5- From Instrument Panel Cover -4- Using Trim Removal Wedge 3409 -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 to 3-.

-- Unclip the trim strip -5- from the instrument panel cover -4- using the Trim Removal Wedge 3409 -arrow- and remove it.
