Instrument Panel Rear Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

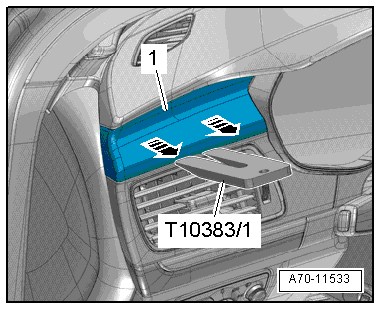

Fig 1: Removing Cover -1- With Wedge T10383/1 -Arrows-

Courtesy of AUDI OF AMERICA, LLC

Driver Side Cover:

-- Unclip the cover -1- using the Wedge Set T10383/1 -arrows- and remove it.

Center Cover:

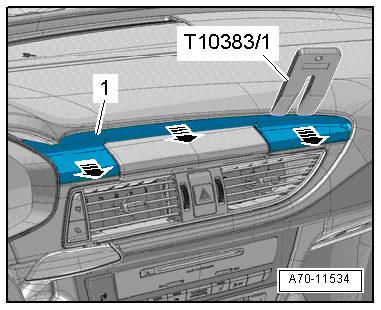

Fig 2: Removing Cover -1- From Front Information Display Control Head -J685- Using Wedge T10383/1 -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Carefully unclip the cover -1- for the Front Information Display Control Head -J685- using the Wedge Set T10383/1 -arrows- and remove it.
