Glove Compartment/Knee Airbag Bracket, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

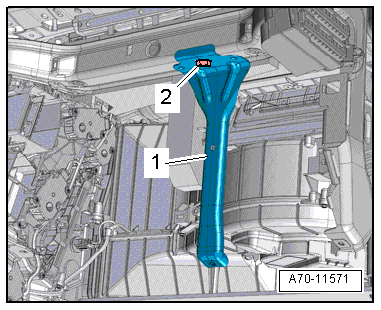

Fig 1: Identifying Glove Compartment/Knee Airbag Bracket Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the glove compartment:

GLOVE COMPARTMENT, REMOVING AND INSTALLING .
GLOVE COMPARTMENT, REMOVING AND INSTALLING, WITH KNEE AIRBAG .

-- Remove the front passenger side right instrument panel vent air guide on the instrument panel central tube. Refer to FRONT PASSENGER SIDE INSTRUMENT PANEL VENT AIR GUIDE, REMOVING AND INSTALLING .

-- Remove the bolt -2- from the bracket on the instrument panel central tube.

-- Remove the bracket -1-.
