Trim Molding, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

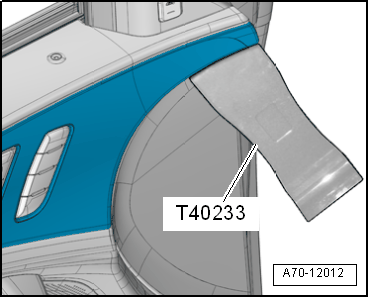

-- Starting at the front, pry the trim out of the door trim panel using the Removal Wedge T40233.

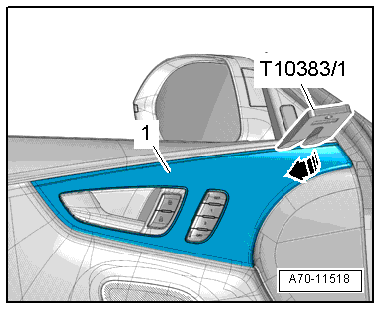

-- Carefully pry the trim -1- out of the door trim panel along the seam using the Wedge Set T10383/1 -arrow-.
-- Swivel the trim to the rear -arrow- so that the hooks on the inside of the trim can be unhooked from the opening in the door trim panel.
