Overview - Front Door Trim Panel
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

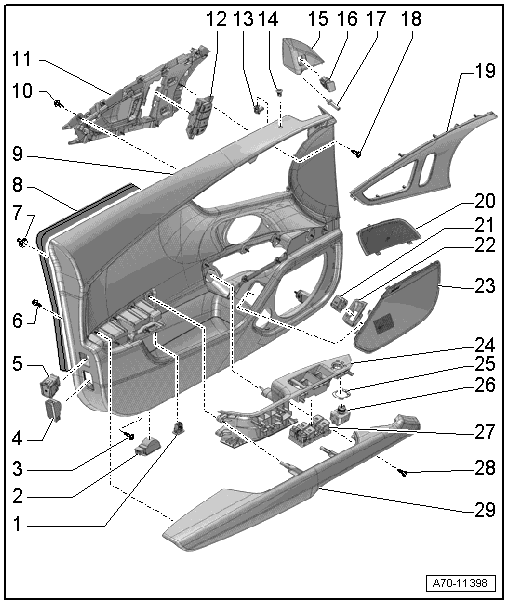

The driver side front door trim panel is shown in the illustration. The door trim panel on the front passenger side is identical.
- Driver Door Storage Compartment Illumination Bulb -L160-
- Front passenger side: Front Passenger Door Storage Compartment Illumination Bulb -L161-
- Equipment levels
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L160- / -L161- .
- Left Front Entry Lamp -W31-
- Front passenger side: Right Front Entry Lamp -W32-.
- Equipment levels
- Removing and installing. Refer to FRONT ENTRY LAMPS -W31- / -W32- .
- Bolt
- For door trim
- 2.5 Nm
- Rear Reflector
- Market-specific driver side: Driver Door Warning Lamp -W30-
- Market-specific front passenger side: Front Passenger Door Warning Lamp -W36-
- Door warning lamps, removing and installing. Refer to DOOR WARNING LAMPS -W30- / -W36- .
- Alarm System Deactivation Switch -E217-
- Equipment levels
- Removing and installing. Refer to ALARM SYSTEM DEACTIVATION SWITCH -E217- .
- Bolt
- 1.2 Nm
- For pull handle/armrest
- Quantity: 14
- Clip
- With seal
- For door trim
- Quantity: 7WARNING:
- For proper crash sensor (pressure sensor) function, ensure door does not leak.
- The door trim clips seal the system. Replace the door trim clips if necessary.
- Insulation
- Door Trim Panel
- Removing and installing. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
- When replacing the door trim panel, a hole for the sleeve -item 14- must be made retroactively in the new door trim panel using the old panel as a sample.
- Bolt
- 1.2 Nm
- For inside door release mechanism
- Quantity: 9
- Interior Door Mechanism
- Removing and installing. Refer to INTERIOR DOOR MECHANISM, REMOVING AND INSTALLING .
- Driver Memory Seat Control Head -E97-
- Front passenger side: Front Passenger Memory Seat Control Head -E277-
- Equipment levels
- Removing and installing. Refer to SEAT MEMORY PROGRAM CONTROL -E97- / -E277- .
- Central Locking -Safe- Indicator Lamp -K133-
- Driver door only
- Removing and installing. Refer to CENTRAL LOCKING -SAFE- INDICATOR LAMP -K133-
- Sleeve
- For Central Locking -SAFE- Indicator Lamp -K133-
- Driver door only
- When replacing the door trim panel, a hole for the sleeve must be made in the new panel using the old panel as a sample
- Inner Cover
- Removing and installing. Refer to MIRROR COVER TRIM, REMOVING AND INSTALLING .
- Attach to the door
- Lane Change Assistance Button -E530-
- Equipment levels
- Removing and Installing. Refer to LANE CHANGE ASSISTANCE BUTTON -E530- .
- Stop
- 4.5 Nm
- For door trim
- Bolt
- 2.5 Nm
- For door trim
- Trim
- for inside door release mechanism
- Removing and installing. Refer to TRIM MOLDING, REMOVING AND INSTALLING .
- Speaker Trim
- For midrange speaker
- Removing and installing. Refer to MIDRANGE SPEAKER TRIM, REMOVING AND INSTALLING .
- Insert into the bottom of the door trim and press on it until it engages audibly.
- Rear Lid Remote Release Button -E233-
- Removing and installing. Refer to REAR LID REMOTE RELEASE BUTTON -E233- .
- Trim
- For Rear Lid Remote Release Button -E233-
- driver door only
- Removing and installing. Refer to REAR LID REMOTE RELEASE BUTTON -E233- .
- Press on until it engages audibly
- Speaker Trim
- For bass speaker
- Removing and installing. Refer to BASS SPEAKER TRIM, REMOVING AND INSTALLING .
- Insert in the rear of the door and press on it until it engages audibly.
- Grip Recess
- with switch mount
- Removing and installing. Refer to BUTTON TRIM, REMOVING AND INSTALLING .
- Symbol Trim
- Mirror Adjusting Switch -E43-
- Vehicles with: Folding Mirror Adjustment Switch -E168-
- Removing and Installing. Refer to MIRROR ADJUSTING SWITCH -E43- / -E168- .
- Power Window Control Head in Driver Door -E512-
- Front passenger side: Front Passenger Door Window Regulator Switch -E107-
- Removing and Installing. Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR -E512- .
- Bolt
- 2.5 Nm
- For door trim
- Pull Handle/Armrest
- Removing and installing. Refer to FRONT ARMREST, REMOVING AND INSTALLING .

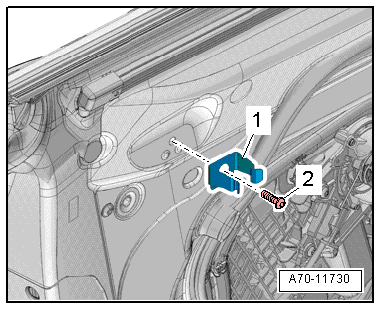

- Clip for the pull handle
- Bolt - 4.5 Nm
