Midrange Speaker Trim, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

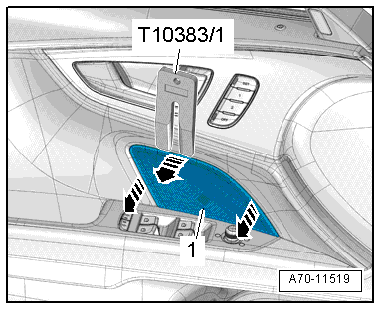

Fig 1: Midrange Speaker Trim
GWWA70-11519Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the speaker trim -1- from the door trim panel starting at the top using the Wedge Set T10383/1 -arrows-.

-- Remove the speaker trim upward out of the door trim panel.
