Front Armrest, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

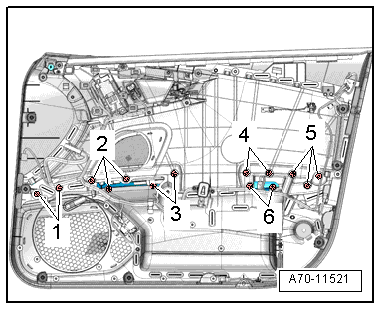

Fig 1: Front Armrest Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove insulation mat.

-- Remove the Power Window Control Head in Driver Door -E512-. Refer to POWER WINDOW CONTROL HEAD IN DRIVER DOOR -E512- .

-- Remove the Mirror Adjusting Switch -E43-. Refer to MIRROR ADJUSTING SWITCH -E43- / -E168- .

-- Remove the rear screws -1 through 6- on the door trim panel.

-- Loosen and remove the pull handle/armrest from the door trim.

Fig 1: Removing Front Armrest

Courtesy of AUDI OF AMERICA, LLC

-- Remove the pull handle/armrest:

Front. Refer to FRONT ARMREST, REMOVING AND INSTALLING .
Rear. Refer to REAR ARMREST, REMOVING AND INSTALLING .

-- Unclip the grip recess -1- with the switch mount from the pull handle/armrest -2- using the Wedge Set T10383/1 -arrow- and remove it.
