Tightening Specifications: Terminal 30 Wire Junction -TV2-

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

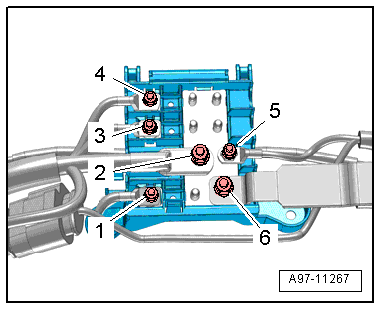

Fig 1: Identifying Terminal 30 Wire Junction -TV2-
GWWA97-11267Courtesy of AUDI OF AMERICA, LLC
  1. PTC line - 18 Nm
  2. Battery jump start terminal -U6- - 20 Nm
  3. Nut - 7.5 Nm
  4. Nut - 7.5 Nm
  5. E-box positive wire - 7.5 Nm
  6. Battery wire - 18 Nm
