Terminal 30 Wire Junction: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and disconnect the ground cable from the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the strut tower. Refer to TOWER BRACE, REMOVING AND INSTALLING .

-- Release the retainer -arrow A- and open the cover -arrow B-.

-- Disconnect the electric wires -2, 3, 5, 6, 7 and 8-.

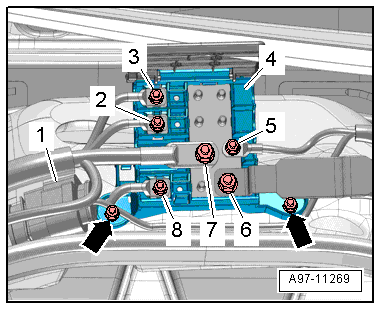

Fig 2: Identifying Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connector -1-.

-- Remove the nuts -arrows- and remove the wire junction from the plenum chamber bulkhead.
