Fuse Panel C, Instrument Panel, Right Side: Removal
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side cover from the instrument panel. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

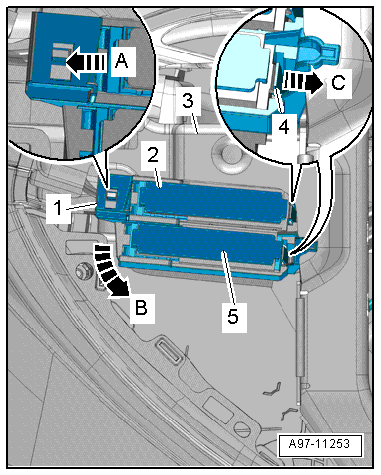

-- Open the clip -4- in -direction of arrow- and remove the fuse panels -2 and 5- out of fuse panel C.
-- Open the clips -arrow A- and remove fuse panel C -1- in -direction of arrow B- on the central tube -3- for the instrument panel.
-- Remove fuse panel C.
