Fuse Panel B, Instrument Panel, Left Side: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

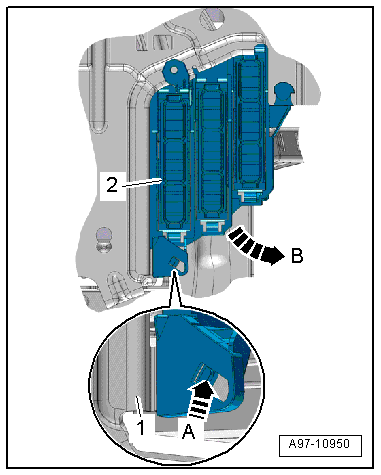

Fig 1: Identifying Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Open the clamp -arrow A- and remove fuse panel B -2- on the instrument panel central tube -1- -arrow B-.

-- Release the clamp -1- -arrow- and remove the fuse panels -2, 3 and 4- from fuse panel B.

Fig 2: Identifying Fuse Panels

Courtesy of AUDI OF AMERICA, LLC

-- Remove fuse panel B.
