Plenum Chamber E-Box, Wire Junction, Fuse Holder And Battery Overview: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Observe notes on contact corrosion CONTACT CORROSION .

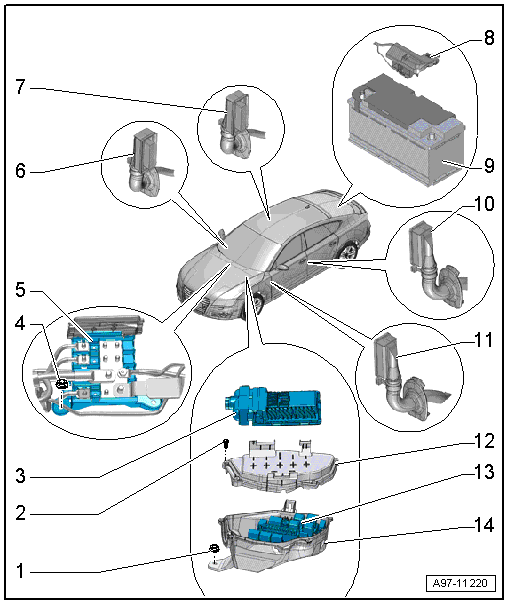

Fig 1: Identifying Plenum Chamber E-Box, Wire Junction, Fuse Holder And Battery Overview

Courtesy of AUDI OF AMERICA, LLC

Nut
- 3 Nm
- Quantity 2
Screw
- 3 Nm
- Quantity 4
Engine Control Module
Nut
- 3 Nm
- Quantity 2
Terminal 30 Wire Junction -TV2-
- Removing and installing, refer to TERMINAL 30 WIRE JUNCTION .
Right Front Door Cut-Off Connector
- Disconnecting, refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Right Rear Door Cut-Off Connector
- Disconnecting, refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Main Fuse Panel
- In the luggage compartment on the battery.
- Removing and installing, refer to MAIN FUSE PANEL IN LUGGAGE COMPARTMENT .
Battery
Left Rear Door Cut-Off Connector
- Disconnecting, refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Left Front Door Cut-Off Connector
- Disconnecting, refer to DOOR CUT-OFF CONNECTOR, DISCONNECTING .
Cover
- For the plenum chamber E-box.
Relay Panel Inside The Plenum Chamber E-Box
- Removing and installing, refer to RELAY AND FUSE PANEL IN PLENUM CHAMBER E-BOX .
- With Fuse panel A -SA-, removing and installing, refer to FUSE PANEL A IN PLENUM CHAMBER E-BOX .
- With Suppressor -C24-, removing and installing, refer to SUPPRESSOR .
Plenum Chamber E-box
- Removing and installing, refer to PLENUM CHAMBER E-BOX .
