Relays Overview
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

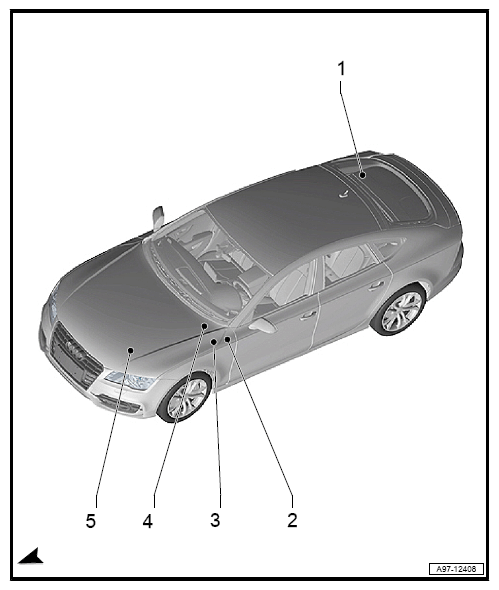

- 1 - Relay Carrier In Luggage Compartment
- 2 - Relays On Relay Carrier Behind Left I/P
- 3 - Relay Carrier Behind Left I/P
- 4 - Relays In E-Box Plenum Chamber
- 5 - Relays In E-Box, V6 TDI
- from model year 2015
