Relays In E-Box Plenum Chamber, LHD

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

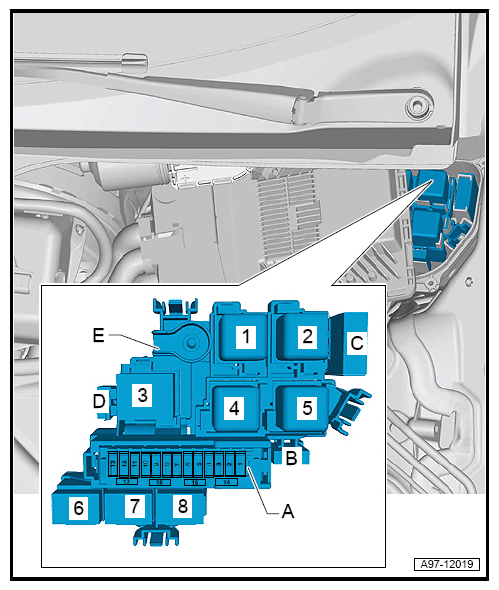

G12768011Courtesy of AUDI OF AMERICA, LLC
  1. A - Fuse Panel A -SA-
  2. E - Terminal 30
  3. 1 - Secondary Air Injection (AIR) Pump Relay -J299- , Gasoline Engine
  4. 2.1 - Starter Relay -J53-
  5. 2.2 - Starter Relay 2 -J695-
  6. 3 - Engine Component Power Supply Relay -J757- , Gasoline Engine
  7. 3 - Automatic Glow Time Control Module -J179- , Diesel Engine
  8. 4 - Main Relay -J271- , Gasoline Engine
  9. 4 - Terminal 30 Power Supply Relay -J317- , Diesel Engine
  10. 5 - Auxiliary Engine Coolant (EC) Pump Relay -J496- , Gasoline Engine
  11. 6 - Not Used
  12. 7 - 17-Pin Connector -T17B- , Red
  13. 8 - 17-Pin Connector -T17A- , White
