Relay Carrier In Luggage Compartment, From My 2015

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

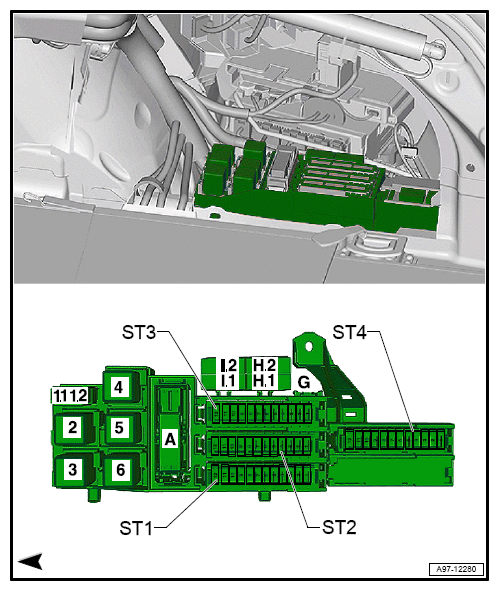

A - 46-Pin Connector T46b, CAN Separating Connector, Black
G - Not Used
H1 - Rear Window Defogger Fuse S41, 40 A
I1 - Optional Equipment Main Fuse S245, 15 A
I1 - Circuit Breaker 1 S361, 20 A
- Only Models with China Equipment
I2 - Optional Equipment Main Fuse S245, 15 A
I2 - Circuit Breaker 2 S362, 20 A
- Only Models with China Equipment
1.1 - Self-Leveling System Fuse S110, 40 A
1.2 - Fuse 1 - Terminal 30 S204, 50 A
2 - Rear Window Defogger Relay -J9-
3 - Sockets Relay -J807-
4 - Power Supply Relay 2 (Terminal 15) -J681-
5 - Level Control System Compressor Relay -J403-
6 - Reducing Agent Metering System Relay -J963-
- Only Reducing Agent Metering System
6 - Fuel Pump (FP) Relay -J17-
- Only Engine Code CRDA, CRDB, CWUA, CWUB
