Fuse Panel B -SB-, Through Model Year 2014
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

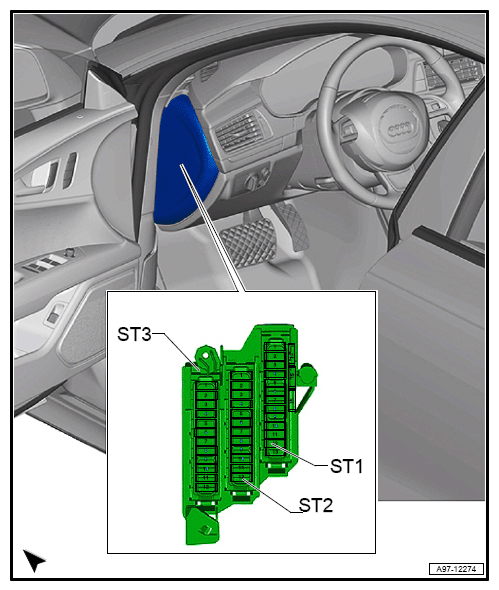

On Left Instrument Panel.
- Fuse Colours
- 40 A - Orange
- 30 A - Light-Green
- 25 A - Clear
- 20 A - Yellow
- 15 A - Light-Blue
- 10 A - Red
- 7.5 A - Brown
- 5 A - Light-Brown
- ST1 - Fuse Carrier 1 -ST1-, Black
- Position of Fuses
- ST2 - Fuse Carrier 2 -ST2, Brown
- Position of Fuses
- ST3 - Fuse Carrier 3 -ST3-, Red
- Position of Fuses
Back to overview Fuse Panel B -SB-, Left-Hand Drive
