Fuse Panel B -SB-, From Model Year 2015
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

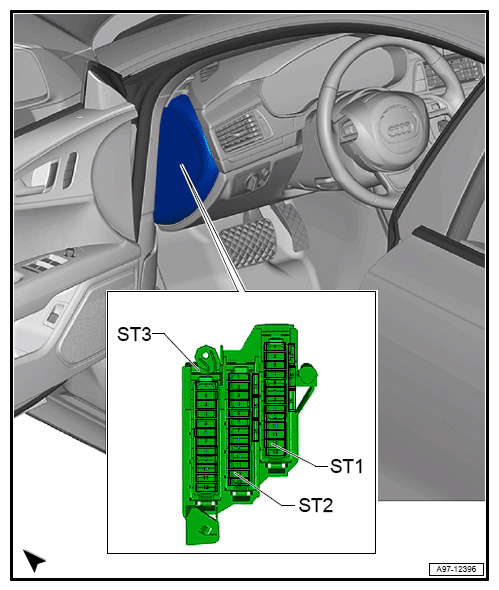

On Left Instrument Panel
- Fuse Colours
- 40 A - Orange
- 30 A - Light-Green
- 25 A - Clear
- 20 A - Yellow
- 15 A - Light-Blue
- 10 A - Red
- 7.5 A - Brown
- 5 A - Light-Brown
- ST1 - Fuse Carrier 1 -ST1-, Black
- Position of fuses Position of Fuses Fuse Carrier 1 -ST1-, Black, From Model Year 2015
- ST2 - Fuse Carrier 2 -ST2-, Brown
- Position of fuses Position of Fuses Fuse Carrier 2 -ST2-, Brown, From Model Year 2015
- ST3 - Fuse Carrier 3 -ST3-, Red
- Position of fuses Position of Fuses Fuse Carrier 3 -ST3-, Red, From Model Year 2015
