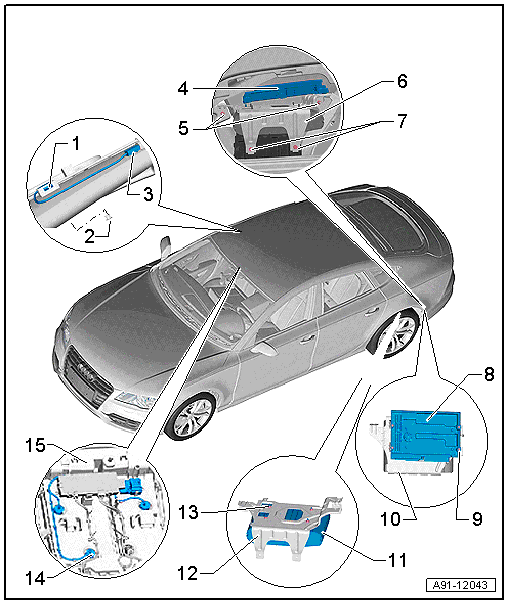

Fig 1: Component Location Overview Of Sound System, Sound Amplifier, Microphones, Bang & Olufsen, Through My 2014
- ANC Microphone with Retaining Plate
- Quantity: 4
- Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
- Trim
- Quantity: 4
- Wiring Harness Coupling
- Quantity: 4
- Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
- Digital Sound System Control Module - J525-
- Connector assignment Digital Sound System Control Module - J525-, BANG & OLUFSEN, THROUGH MY 2014 .
- Removing and installing. Refer to Digital Sound System Control Module - J525-, REMOVING AND INSTALLING, BANG & OLUFSEN, THROUGH MY 2014 .
- Nut
- 5 Nm
- Quantity: 2
- Bracket
- Screw
- 4 Nm
- Quantity: 2
- Digital Sound System Control Module - J525-
- Screw
- 4 Nm
- Quantity: 4
- Bracket
- Digital Sound System Control Module 2 - J787-
- Connector assignment Digital Sound System Control Module 2 - J787-, BANG & OLUFSEN, THROUGH MY 2014 .
- Removing and installing. Refer to Digital Sound System Control Module 2 - J787-, REMOVING AND INSTALLING, BANG & OLUFSEN, THROUGH MY 2014 .
- Bracket
- Nut
- 4 Nm
- Quantity: 4
- Interior Microphone - R74-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Front Interior Lamp - W1-
- With Microphone Unit in Front Roof Module - R164-
- Removing and installing. Refer to REMOVAL AND INSTALLATION .
