Component Location Overview - Sound System, Sound Amplifier, Microphones, BOSE, Through My 2014
WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

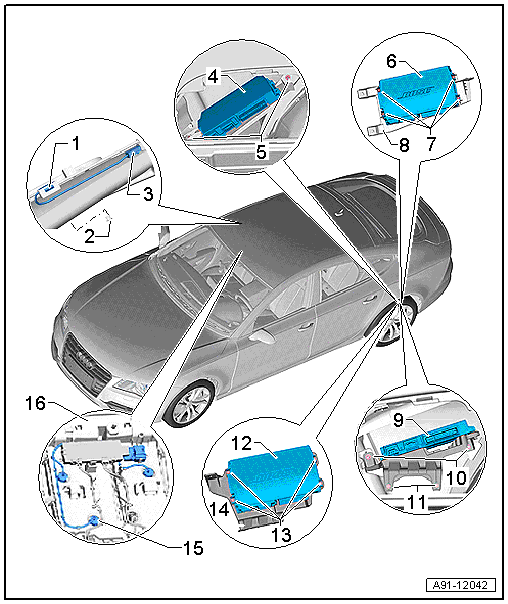

Fig 1: Component Location Overview Of Sound System, Sound Amplifier, Microphones, Bose, Through My 2014
- ANC Microphone with Retaining Plate
- Quantity: 4
- Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
- Trim
- Quantity: 4
- Wiring Harness Coupling
- Quantity: 4
- Overview. Refer to COMPONENT LOCATION OVERVIEW - ANC MICROPHONES .
- Digital Sound System Control Module - J525-
- Connector assignment Digital Sound System Control Module - J525-, BOSE, THROUGH MY 2014 .
- RMC, removing and installing. Refer to Digital Sound System Control Module - J525-, REMOVING AND INSTALLING, BOSE, RMC, THROUGH MY 2014 .
- Nut
- 4 Nm
- Quantity: 3
- Digital Sound System Control Module - J525-
- Bolt
- 6 Nm
- Quantity: 4
- Bracket
- Digital Sound System Control Module - J525-
- MMI, removing and installing. Refer to Digital Sound System Control Module - J525-, REMOVING AND INSTALLING, BOSE, MMI, THROUGH MY 2014 .
- Nut
- 4 Nm
- Quantity: 2
- Screw
- 4 Nm
- Quantity: 2
- Digital Sound System Control Module - J525-
- Bolt
- 6 Nm
- Quantity: 4
- Bracket
- Interior Microphone - R74-
- Overview. Refer to OVERVIEW - MICROPHONE UNIT .
- Front Interior Lamp - W1-
- With Microphone Unit in Front Roof Module - R164-
- Removing and installing. Refer to REMOVAL AND INSTALLATION .
