Rearview Camera -R189-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.
-- Remove the lower rear lid trim panel. Refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

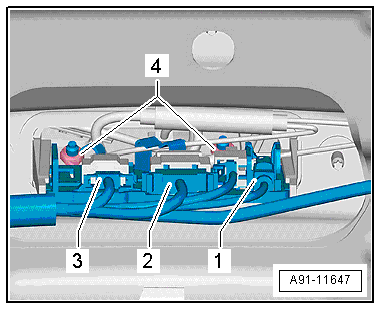

-- Release and disconnect the connectors -1-, -2- and -3- in the rear lid.
The Rearview Camera -R189- is firmly attached to the handle button.
-- Remove the nuts -4-.
-- Pull the handle button with the Rearview Camera -R189- out of the retainer in the rear lid.
