Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove any CDs still in the Information Electronics Control Module 1 -J794-.

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Remove the Climatronic Control Module -J255-. Refer to Display And Control Head .

-- Remove the screw -2- on the Information Electronics Control Module 1 -J794- -1-.

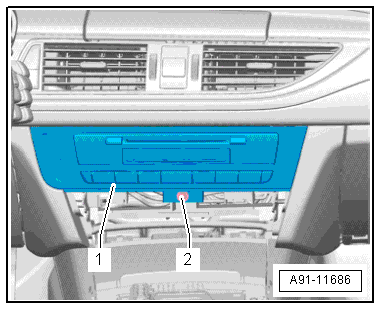

Fig 1: Identifying Screw -2- On Information Electronics Control Module 1 -J794- -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Information Electronics Control Module 1 -J794- -1- from the mounting frame.

CAUTION:

Pay attention to the wire routing to the display in the instrument panel. It will not be possible to extend the display again if the wiring is routed incorrectly during installation.

-- Release and disconnect all connectors from the Information Electronics Control Module 1 -J794- and from the trim with switches.

-- Insert the Fiber-Optic Repair Set - Connector Protective CapsVAS6223/9 -1- onto the MOST bus connector -2-.

Fig 2: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

Next, the trim with the switches -1- must be removed from the Information Electronics Control Module 1 -J794- -3-.

Fig 3: Identifying Switches And Information Electronics Control Module 1 -J794-

Courtesy of AUDI OF AMERICA, LLC

Removing the Trim

-- Remove the four screws -2- and remove the trim with switches -1- from the Information Electronics Control Module 1 -J794- -3-.

Fig 4: Identifying Switches And Information Electronics Control Module 1 -J794-

Courtesy of AUDI OF AMERICA, LLC
