Antenna Amplifier 2 -R111- / Antenna Amplifier 3 -R112-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the upper rear lid trim panel. Refer to UPPER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

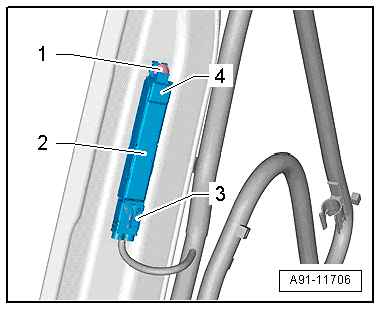

-- Release and disconnect the connectors -3- and -4- on the Antenna Amplifier 2 -R111- -2-.
-- Remove the bolt -1- and remove the Antenna Amplifier 2 -R111- -2- from the rear lid.
