Antenna Amplifier -R24- / Antenna Amplifier 4 -R113-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2015 Audi A7 Quattro and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
-- Remove the lower rear lid trim panel. Refer to LOWER REAR LID TRIM PANEL, REMOVING AND INSTALLING .

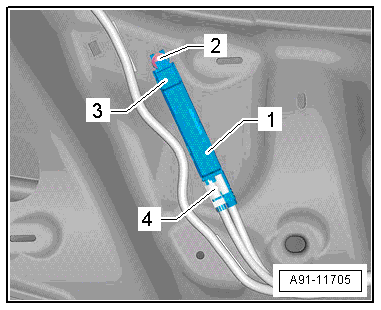

-- Release and disconnect the connectors -3- and -4- on the Antenna Amplifier -R24- -1-.
-- Remove the screw -2- and remove the Antenna Amplifier -R24- -1- from the rear lid.
