Coolant Recirculation Pump -V50-, Function

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, 2014 Audi RS 7, and 2014 Audi A7 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Function Mode

Fig 1: Coolant Recirculation Pump Component Location Overview

Courtesy of AUDI OF AMERICA, LLC

The bracket -4- for the Coolant Recirculation Pump -V50- -1- and for the Coolant Shut-Off Valve -N82- -2- is connected with the body via the clip nuts -6- to reduce noise.
The Coolant Shut-Off Valve -N82- and the Coolant Recirculation Pump -V50- are directly connected to the bracket
The Coolant Recirculation Pump -V50- supports the engines own coolant pump during coolant recirculation. It is activated by the Climatronic Control Module -J255- control head to ensure sufficient and even coolant flow through the A/C heater core.

NOTE:

The installation of the Coolant Shut-Off Valve -N82- and the Coolant Recirculation Pump -V50- depends upon the engine and the vehicle equipment.

There is no Coolant Recirculation Pump -V50- / Coolant Shut-Off Valve -N82- installed for vehicles with an auxiliary heater. These functions are carried out by the Recirculation Pump -V55- / Heater Coolant Shut-Off Valve -N279-.

The coolant is drawn in via the coolant hose -5- from the engine with the Coolant Recirculation Pump -V50- -6- running and is pumped via the coolant hose -3- to the heater core for the heater (for the A/C unit).

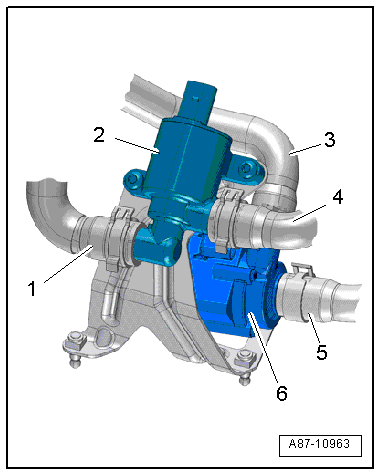

Fig 2: Coolant Hoses, Coolant Shut-Off Valve And Coolant Recirculation Pump
Courtesy of AUDI OF AMERICA, LLC
Using the coolant hose -4-, the coolant flows back to the engine via the return hose -1- for the heater core and the Coolant Shut-Off Valve -N82- -2- (dependent upon the engine version and the vehicle equipment).
This controls the Coolant Recirculation Pump -V50- directly when the ignition is turned on, depending on the coolant temperature and the adjustment on the Climatronic Control Module -J255- control head.
The Coolant Recirculation Pump -V50- (and the Coolant Shut-Off Valve -N82-) are directly controlled by the Climatronic Control Module -J255- control head for vehicles with a "start/stop system".
There may be faults in these components stored in the Climatronic Control Module -J255- control head. Therefore pay attention to the version, coding, and adaption of the Climatronic Control Module -J255-. use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
