A/C Pressure/Temperature Sensor -G395-, REMOVING AND INSTALLING, AUDI RS6/RS7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

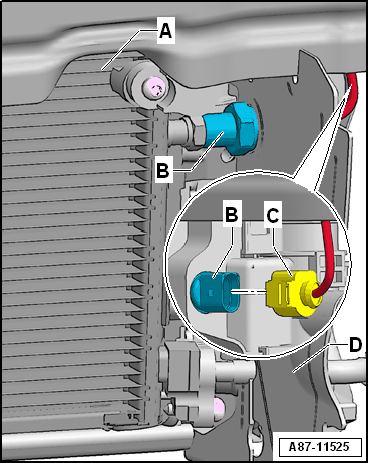

Fig 1: Locating A/C Pressure/Temperature Sensor Connectors & Air Guide
GWWA87-11525Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -C-.

-- Remove the air guide -D-.

-- Remove the A/C Pressure/Temperature Sensor -G395- -B-.
