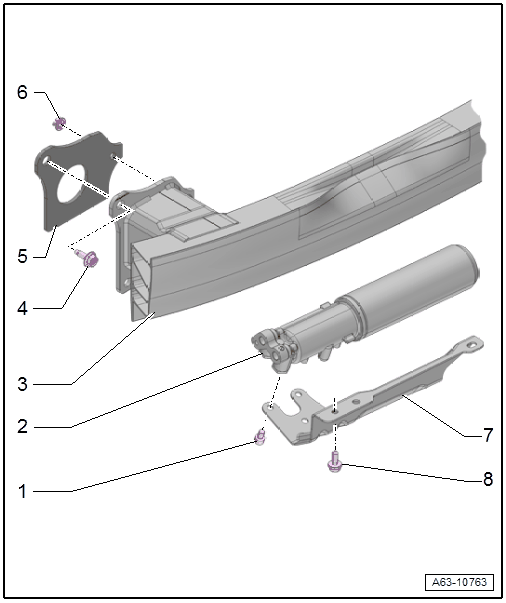

Overview - Impact Member, Audi RS7
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 3
- Tightening specification. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
- Central Valve
- For electronic damping
- Removing and Installing. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
- Impact Member
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, AUDI RS7 .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure
- Foam Seal
- Replace if damaged
- Nut
- 23 Nm + 90°
- Replace after removing
- Retaining Bracket
- For central valve
- Bolt
- Quantity: 3
- Tightening specification. Refer to CENTRAL VALVE, REMOVING AND INSTALLING .
