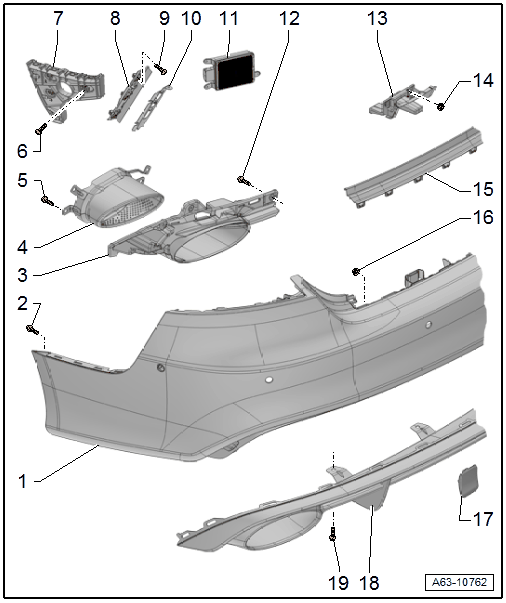

Overview - Bumper Cover, Audi RS 7
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 2 Nm
- Mount
- For the tail pipe trim
- Removing and installing. Refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, AUDI RS7 .
- Tail Pipe Trim
- Removing and installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, AUDI RS7 .
- Bolt
- 2 Nm
- Quantity: 4
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure
- Side Mount
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER SIDE MOUNT, REMOVING AND INSTALLING .
- Upper Mount
- For the bumper cover
- Removing and installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure
- Locking Rail
- For the bumper cover
- Lane Change Assistance Control Module
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770- .
- Screw
- 2 Nm
- Quantity: 3
- Center Mount
- For the bumper cover
- Removing and installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- Tightening sequence. Refer to Figure
- Bumper Cover Trim
- Removing and installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING .
- Nut
- 2 Nm
- Quantity: 4
- Cover
- For the towing eye
- Bumper Cover Lower Section
- There are different versions.
- Removing and installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, AUDI RS7 .
- Bolt
- 1.7 Nm
- Vehicles without a trailer hitch, quantity: 3
- Vehicles with a trailer hitch, quantity: 2
