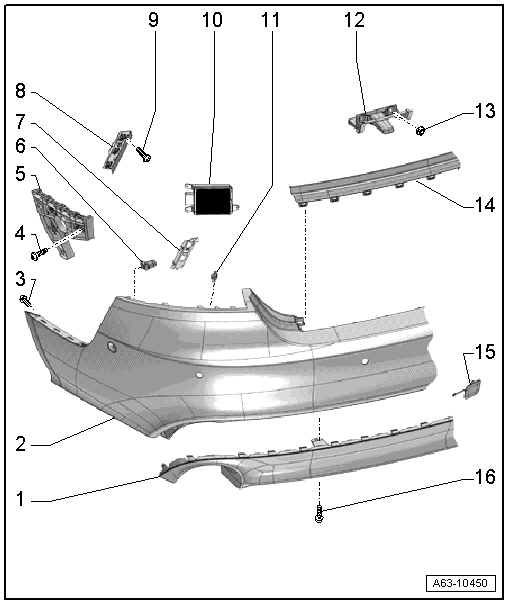

Overview - Bumper Cover, Audi A7/S7 Through MY 2014
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If the vehicle has lane change assistance, the lane change assistance control module -J769- / -J770- must be recalibrated. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, CALIBRATING
.
- Bumper Cover Lower Section
- There are different versions.
- Removing and installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, AUDI A7/S7 .
- Rear Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2014 .
- Bolt
- 2 Nm
- Bolt
- Quantity: 3
- Tightening sequence, refer to Fig 4
- Side Mount
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER SIDE MOUNT, REMOVING AND INSTALLING .
- Rear Parking Aid Sensor
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
- Locking Rail
- For the bumper cover
- Upper Mount
- For the bumper cover
- Removing and installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- Tightening sequence, refer to Fig 2
- Lane Change Assistance Control Module
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770- .
- Rear Parking Aid Sensor
- Removing and installing. Refer to REAR PARKING AID SENSORS -G203- / -G204- / -G205- / -G206- .
- Center Mount
- For the bumper cover
- Removing and installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- Tightening sequence, refer to Fig 3
- Bumper Cover Trim
- Removing and installing, refer to BUMPER COVER TRIM, REMOVING AND INSTALLING .
- Cover
- For the towing eye
- Screw
- 1.7 Nm
- Vehicles without a trailer hitch, quantity: 3
- Vehicles with a trailer hitch, quantity: 2
-- Tighten the bolts in the sequence -1 to 3- to 1.5 Nm.
-- Tighten the nuts to 1.5 Nm in the following sequence: -1 and 2-.
-- Tighten the bolts in the sequence -1 to 3- to 1.5 Nm.
