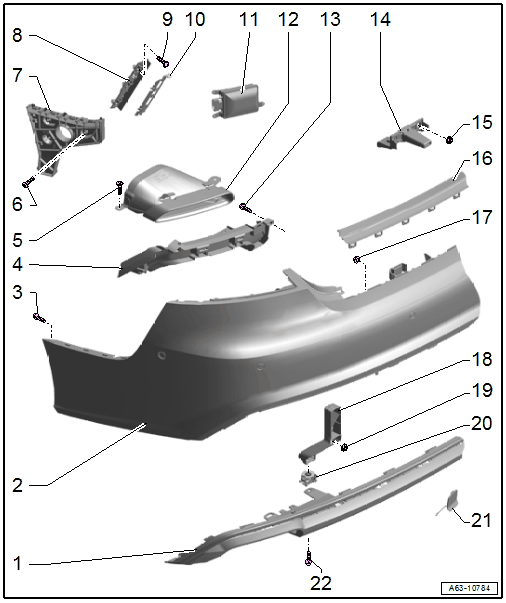

Overview - Bumper Cover, Audi A7/S7 From MY 2015
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Bumper Cover Lower Section
- There are different versions.
- Removing and installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, AUDI RS7 .
- Rear Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING, VEHICLES FROM MY 2015 .
- Bolt
- 2 Nm
- Mount
- For the tail pipe trim
- Removing and installing. Refer to TAIL PIPE TRIM MOUNT, REMOVING AND INSTALLING, FROM MY 2015 .
- Bolt
- 2 Nm
- Quantity: 2
- Bolt
- Quantity: 3
- Tightening sequence, refer to Figure
- Side Mount
- For the bumper cover
- Removing and installing. Refer to BUMPER COVER SIDE MOUNT, REMOVING AND INSTALLING .
- Upper Mount
- For the bumper cover
- Removing and installing. Refer to UPPER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- Tightening sequence. Refer to Figure
- Locking Rail
- For the bumper cover
- Lane Change Assistance Control Module
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770- .
- Tail pipe trim
- Removing and installing. Refer to TAIL PIPE TRIM, REMOVING AND INSTALLING, FROM MY 2015 .
- Bolt
- 2 Nm
- Quantity: 3
- Center Mount
- For the bumper cover
- Removing and installing. Refer to CENTER BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- Quantity: 2
- Tightening sequence. Refer to Figure
- Bumper Cover Trim
- Removing and installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING .
- Nut
- 2 Nm
- Quantity: 4
- Rear Mount
- For the bumper cover
- Removing and installing. Refer to REAR BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- 1.5 Nm
- Quantity: 2
- Adjusting Element
- Cover
- For the towing eye
- Screw
Metal screw
- 1.7 Nm
- Quantity: 2
Bolt M6
- 4.5 Nm
- Quantity: 2
