Bumper Cover Gap Dimension
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

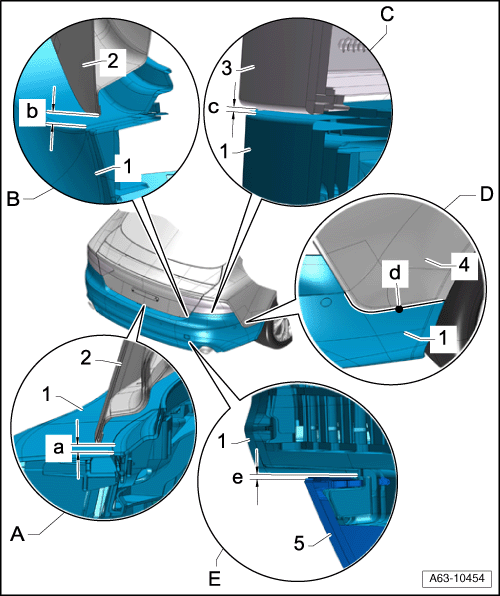

- A -
Rear Bumper Cover to the Bottom of the Rear Lid
- Gap dimension -a- = 5.3 mm
-1- Bumper cover
-2- Rear lid
- B -
Rear Bumper Cover to the Side of the Rear Lid
- Gap dimension -b- = 4.5 mm
-1- Bumper cover
-2- Rear lid
- C -
Rear Bumper Cover to the Outer Tail Lamp
- Gap dimension -c- = 1.5 mm
-1- Bumper cover
-3- Outer tail lamp
- D -
Rear Bumper Cover to the Rear Side Panel
- Gap dimension -d- = zero gap
-1- Bumper cover
-4- Rear side panel
- E -
Rear Bumper Cover to the Bumper Cover Lower Section
- Gap dimension -e- = 1.0 mm
-5- Bumper cover lower section
-1- Bumper cover
