Bumper Cover Lower Section, Removing And Installing, Audi A7/S7: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

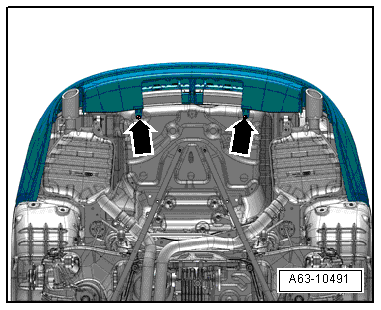

Fig 1: Identifying Screws

Courtesy of AUDI OF AMERICA, LLC

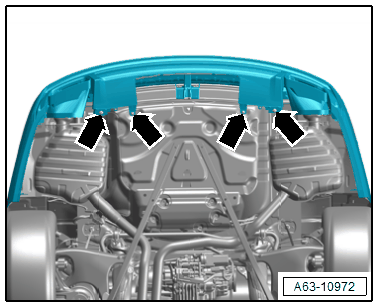

-- Vehicles through 2014: Remove the screws -arrows- on the lower section of the bumper cover.

-- Vehicles from 2015: Remove the screws -arrows- on the lower section of the bumper cover.

Fig 2: Identifying Screws

Courtesy of AUDI OF AMERICA, LLC

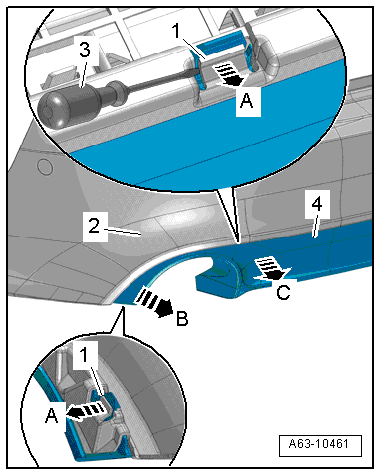

-- Push the tab -1- carefully with a narrow screwdriver -3- in direction of -arrow A- at the same time, remove on the lower section -4- and remove the clips from the bumper cover -2-.

Fig 3: Identifying Tab, Lower Section And Bumper Cover

Courtesy of AUDI OF AMERICA, LLC

Unlock the lower section of the bumper cover from the outside -arrow B- to the center of the vehicle -arrow C-.
