Overview - Bumper Cover, Audi RS 7

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

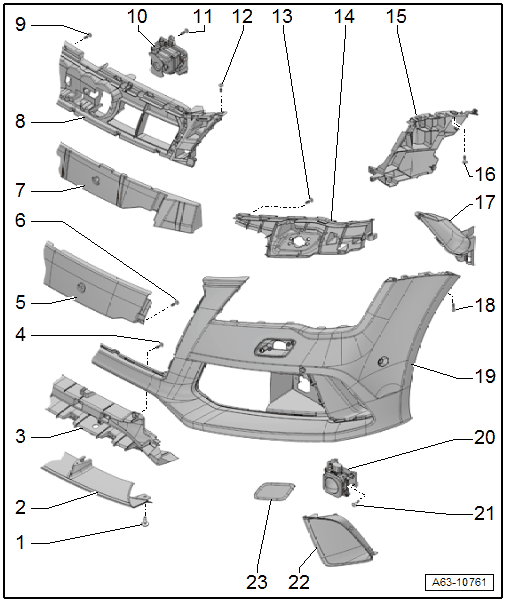

Fig 1: Identifying Bumper Cover Overview - Audi RS 7

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- 2 Nm
Spoiler Lower Section
- Removing and installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, AUDI RS7 .
Mount
- For the spoiler lower part
- Removing and installing. Refer to SPOILER LOWER SECTION MOUNT, REMOVING AND INSTALLING, AUDI RS7 .
Bolt
- 2 Nm
- Quantity: 4
Mount
- For the molded foam part
- Removing and installing. Refer to MOLDED FOAM PIECE MOUNT, REMOVING AND INSTALLING, AUDI RS7 .
Bolt
- 1.5 Nm
- Quantity: 2
Molded Foam Piece
- Removing and installing. Refer to MOLDED FOAM PIECE, REMOVING AND INSTALLING, AUDI RS7 .
Center Reinforcement Brace
- Removing and installing. Refer to CENTER REINFORCEMENT BRACE, REMOVING AND INSTALLING, AUDI RS7 .
Bolt
- 1.5 Nm
- Quantity: 6
Mount
- For the Night Vision System Camera -R212-
- Removing and installing. Refer to Night Vision System Camera -R212- MOUNT, REMOVING AND INSTALLING .
Bolt
- 6 Nm
- Quantity: 4
Bolt
- 4 Nm
- Quantity: 2
Bolt
- 1.5 Nm
Side Reinforcement Brace
- Removing and installing. Refer to SIDE REINFORCEMENT BRACE, REMOVING AND INSTALLING, AUDI RS7 .
Front bumper cover mount
- Removing and installing. Refer to FRONT BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Bolt
- 4 Nm
- Quantity: 2
Mount
- For the exterior air intake grille
- Removing and installing. Refer to SIDE AIR INTAKE TRIM, REMOVING AND INSTALLING, AUDI RS7 .
Bolt
- 1.5 Nm
Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Distance Regulation Control Module (ACC)
- Removing and Installing. Refer to DISTANCE REGULATION CONTROL MODULE - J428- / DISTANCE REGULATION CONTROL MODULE 2 - J850-, REMOVING AND INSTALLING .
Screw
- Tightening specification. Refer to DISTANCE REGULATION CONTROL MODULE - J428- / DISTANCE REGULATION CONTROL MODULE 2 - J850-, REMOVING AND INSTALLING .
Trim
- For the side air intake grille
- Removing and installing. Refer to SIDE AIR INTAKE TRIM, REMOVING AND INSTALLING, AUDI RS7 .
Spray Nozzle Cover
- For the headlamp washer system
- Removing and installing. Refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLE COVER, REMOVING AND INSTALLING .
