Overview - Bumper Cover, Audi A7/S7 From MY 2015

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

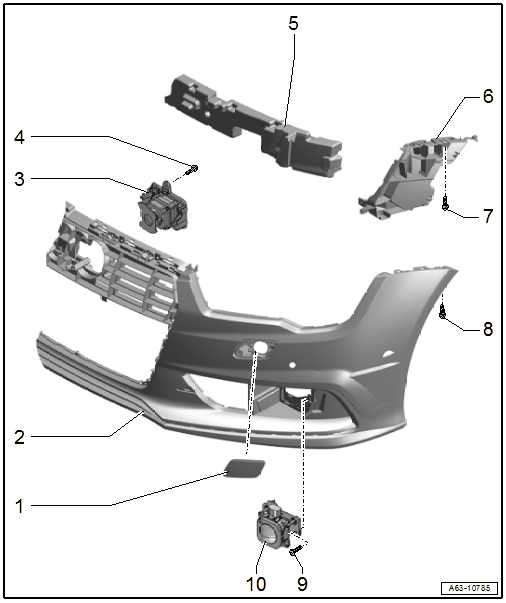

Fig 1: Identifying Bumper Cover Overview - Audi A7/S7 From MY 2015

Courtesy of AUDI OF AMERICA, LLC

Spray Nozzle Cover
- For the headlamp washer system
- Removing and installing. Refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLE COVER, REMOVING AND INSTALLING .
Bumper Cover
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Night Vision System Camera -R212-
- Removing and Installing. Refer to NIGHT VISION SYSTEM CAMERA, REMOVING AND INSTALLING
Bolt
- Quantity: 4
- Tightening specification. Refer to NIGHT VISION SYSTEM CAMERA, REMOVING AND INSTALLING
Molded Foam Piece
- Removing and installing. Refer to MOLDED FOAM PIECE, REMOVING AND INSTALLING, AUDI A7/S7 FROM MY 2015 .
Front Bumper Cover Mount
- Removing and installing. Refer to FRONT BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Bolt
- 4 Nm
- Quantity: 2
Bolt
- 1.5 Nm
Bolt
- Tightening specification. Refer to DISTANCE REGULATION CONTROL MODULE - J428- / DISTANCE REGULATION CONTROL MODULE 2 - J850-, REMOVING AND INSTALLING .
Distance Regulation Control Module (ACC)
- Removing and Installing. Refer to DISTANCE REGULATION CONTROL MODULE - J428- / DISTANCE REGULATION CONTROL MODULE 2 - J850-, REMOVING AND INSTALLING .
